PAYLOAD BAY

  • Payload : 300 kg
  • Volume : 1200 L

The payload bay offers a large volume available for microgravity and/or space environment experiments. Depending on the type of payload the fairing can be jettisoned to offer a dramatic scenery of the Earth below. The bay is detached from the thruster during reentry. It gently splashes-down into the ocean thanks to parachutes and recovered later-on.

Engine

  • Propellant : HDPE / LOx
  • Nozzle : Bell-shaped

This engine provides a max thrust of 100 kN. Combustion from HDPE/LOx propellants do not produce toxic fumes. The fumes are harmless for the inhabitants and wildlife surrounding the launching area. This first stage engine is equipped with a bell-shaped nozzle to benefit from highest propulsive efficiency during ascent and atmosphere pressure variation.

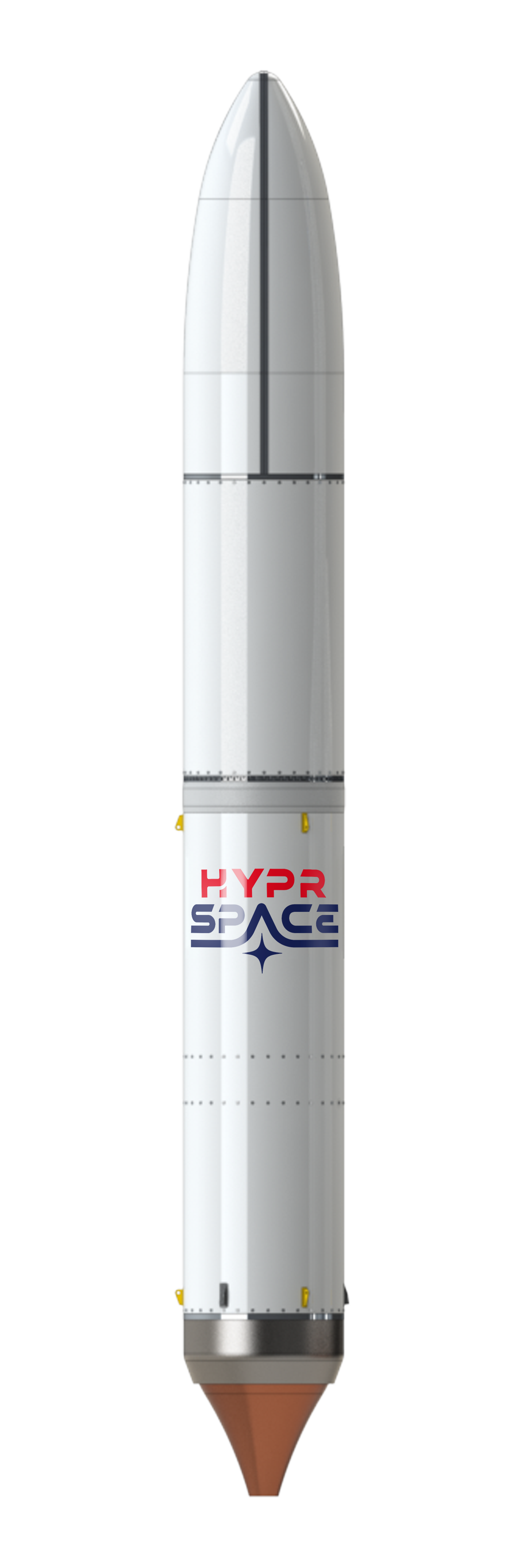

BAGUETTE ONE

single stage

  • Burn time : 120 s
  • Thrust : 100 kN

This single-stage-to-Karman-line is able to send the payload above the Earth atmosphere for a free-fall flight of about 5 to 10 minutes. During this lapse of time, the payload is in microgravity and can be exposed to Space environment.



characteristics

  • Height : 7 m
  • Payload : 300 kg
  • Diameter : 80 cm
  • Liftoff mass : 2,5 T
  • Stages : 1
  • Booster : recoverable (demo)
